Series PLM/E/H

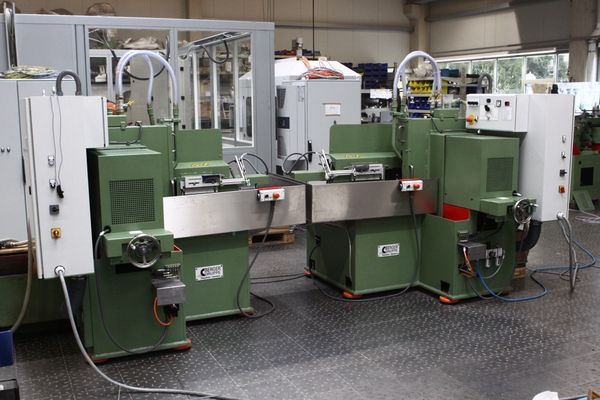

Glazing machine
PLM/E/H: Mechanical glazing of knife blades
The hydraulic glazing machine is conceived for mechanical glazing of ground knife blades.
It is equipped with:
- main motor of 5,5 kW/7 HP for spindle drive
- frequency inverter for continuous adjustment of the spindle speed
- equipped for glazing discs of 530 mm Ø
- compensation of glazing wheel wear manually by hand wheel
- adjustment of glazing carriage between -10° and +10° manually with scale
- pneumatic activated contact pressure device with manual adjustable pressure control valve
